Trina Solar Panel 665W PERC Monocrystalline 132 Cells 38V 17.51A 35mm Anodized Aluminum Alloy Silver PERC Technology 30A

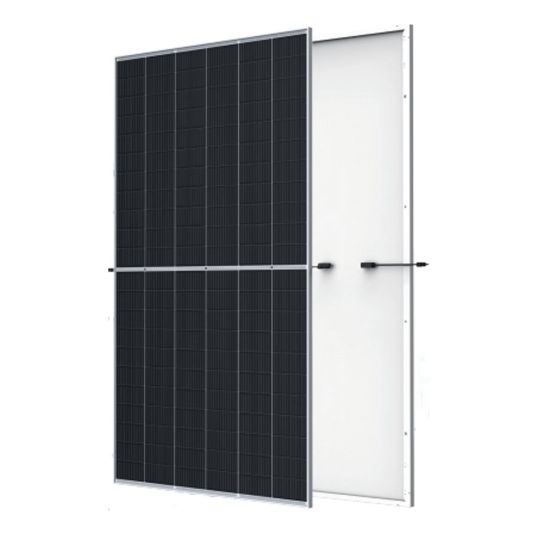

$Trina\Trina_TSM-DE21.JPG$

Description

Solar Panel, P Type Model, PERC Monocrystalline Cell, 132, 665 Watt, 38 Volt Maximum, 17.51 Amp Maximum, 45.9 Volt Open Circuit, 18.57 Amp Short Circuit, 30 Amp Max. Fuse, 1500 Volt DC Max. System, 21.4% Efficiency, 0-5 Watt Power Tolerance, MC4 EVO2, TS4 Connector, IP68 Junction Box, 2384 mm Length

Key Specifications

SKU	TNATSM-665DE21
Brand	TRINA
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High customer value-Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time. Lowest guaranteed rst year and annual degradation. Designed for compatibility with existing mainstream system components High power up to 670 Watt-Up to 21.6% module effciency with high density interconnect technology. Multi-busbar technology for better light trapping eect, lower series resistance and improved current collection High reliability-Minimized micro-cracks with innovative non-destructive cutting technology. Ensured PID resistance through cell process and module material control. Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas. Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load High energy yield-Excellent IAM (Incident Angle Modifer) and low irradiation performance, validated by 3rd party certifcations. The unique design provides optimized energy production under inter-row shading conditions. Lower temperature coeffcient (-0.34%) and operating temperature
Standard Pack Size	31
UNSPSC Class	26111600
UOM	EA
Vendor Product	TSM-665DE21
Certifications	CE / TUV
Connector Type	MC4 EVO2 / TS4
Efficiency	21.40%
Frame Construction	35 mm Anodized Aluminium Alloy Silver
Front Glass	3.2 mm, High Transmission, AR Coated Heat Strengthened Glass
Height	35 mm
Item Weight	33.6 kg
Junction Box	IP68
Max. Fuse Current	30 Amp
Max. System Voltage	1500 Volt DC
Max. Voltage	38 Volt
Model	P Type
Number Of Cells	132
Operating Temperature	-40 to 85 deg C
Please Note	Technology: PERC
Output Cables	Photovoltaic Technology Cable 4 sq-mm / Portrait: N 280 mm/P 280 mm
Power Tolerance	0-5 Watt
Temperature Coefficient	-0.34%/ deg C
Warranty	12 Years Workmanship/ 25 year Power
Wattage	665 Watt
Width	1303 mm
