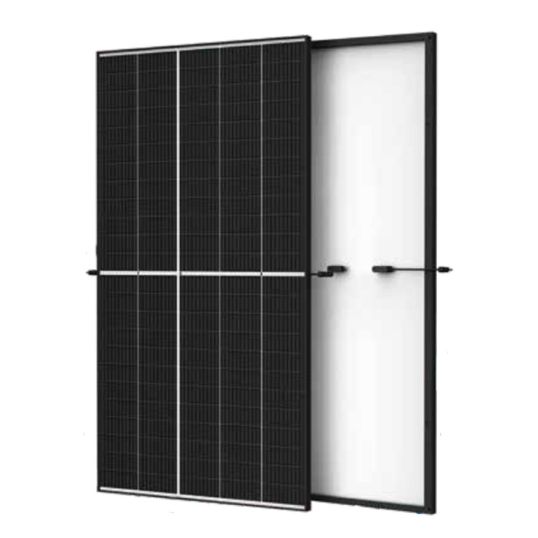

Trina Solar Panel 405W PERC Monocrystalline 120 Cells 34.4V 11.77A 30mm Anodized Aluminum Alloy Black PERC Technology

$Trina\Trina_TSM-xxxDE09.08.JPG$

Description

Solar Panel, P Type Model, PERC Monocrystalline Cell, 120, 405 Watt, 34.4 Volt Maximum, 11.77 Amp Maximum, 41.4 volt Open Circuit, 12.34 Amp Short Circuit, 20 Amp Max. Fuse, 1500 Volt DC Max. System, 21.1% Efficiency, 0-5 Watt Power Tolerance, MC4 EVO2, TS4 Connector, IP68 Junction Box, 30 mm Height

Key Specifications

SKU	TNATSM405DE09.08
Brand	TRINA
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Small in size, big on power- Small form factor. Generate a huge amount of energy even in limited space. Up to 405 Watt, 21.1% module e ciency with high density interconnecttechnology. Multi-busbar technology for better light trapping e ect, lower series resistance and improved current collection. Reduce installation cost with higher power bin and e ciency. Boost performance in warm weather with lower temperature coeffcient (-0.34%) and operating temperature Universal solution for residential and C&I rooftops-Designed for compatibility with existing mainstream optimizers, inverters and mounting systems. Perfect size and low weight. Easy for handling. Economy for transporting. Diverse installation solutions. Flexible for system deployment High Reliability- 15 year product warranty. 25 year performance warranty with lowest degradation. Ensured PID resistance through cell process and module material control. Mechanical performance up to 6000 Pa positive load and 4000 Pa negative load
Standard Pack Size	36
UNSPSC Class	26111600
UOM	EA
Vendor Product	TSM-405DE09.08
Connector Type	MC4 EVO2 / TS4
Frame Construction	30 mm Anodized Aluminium Alloy Black
Certifications	CE / CULUS / TUV
Front Glass	3.2 mm, High Transmission, AR Coated Heat Strengthened Glass
Efficiency	21.10%
Height	30 mm
Item Weight	21 kg
Junction Box	IP68
Max. System Voltage	1500 Volt DC
Max. Fuse Current	20 Amp
Max. Voltage	34.4 Volt
Model	P Type
Number Of Cells	120
Operating Temperature	-40 to 85 deg C
Output Cables	Photovoltaic Technology Cable 4 sq-mm / Portrait: 280/280 mm
Please Note	Technology:PERC
Power Tolerance	0-5 Watt
Temperature Coefficient	-0.34%/ deg C
Wattage	405 Watt
Warranty	15 Years Workmanship/ 25 Years Power
Width	1096 mm
