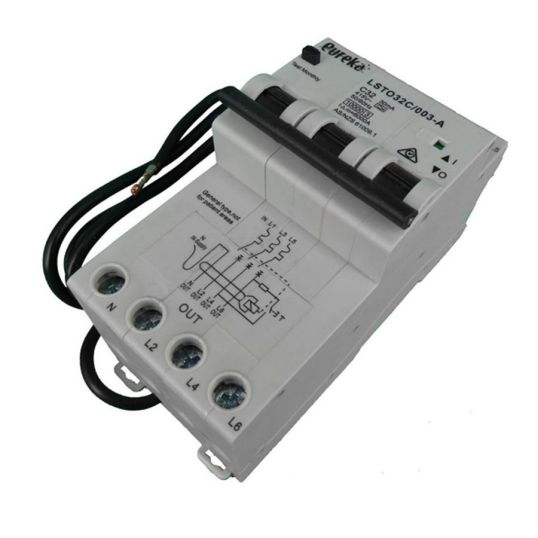

Eureka LSTO Range RCBO 3 Pole 10kA 32A 30mA C Curve Type A

$Eureka\Eureka_LSTO32C003A.jpg$

Description

RCBO, 32 Amp, 400/415 Volt AC, 50/60 Hz, 10 kA Interrupt Capacity, 30 mA Trip Sensitivity, 3, C Curve, Thermal Magnetic, Pillar Terminal, IP20, 35mm DIN Rail Mounting, 113.5mm Height, 53.4mm Width, 69.7mm Depth

Key Specifications

SKU	TOBLSTO32C/003A
Brand	Eureka
Range Name	LSTO
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Overload and short circuit protection Earth leakage and residual current protection 17.8mm pitch Thermal Magnetic release 1 Pole & 3 Pole Range C, D curve option Thermal Magnetic release
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	LSTO32C/003A
Current	32 Amp
Connection Type	Pillar
Current	32 Amp
Depth	69.7 mm
Frequency	50/60 Hz
Height	113.5 mm
Interrupt Capacity	10 kA
IP Rating	IP20
Mounting Method	DIN Rail
Number Of Poles	3 Pole
Trip Characteristic	C Curve
Terminal Connection	Pillar
Trip Sensitivity	30 mA
Voltage	400-415 Volt
Width	53.4 mm
