Tonglin Building Wire Earth Cable 4mm 7/0.85mm PVC PVC 100m 0.1-1kV 2.55mm 1mm >=125% 12.5Mpa 4.61Ohm/km 40GOhm/m

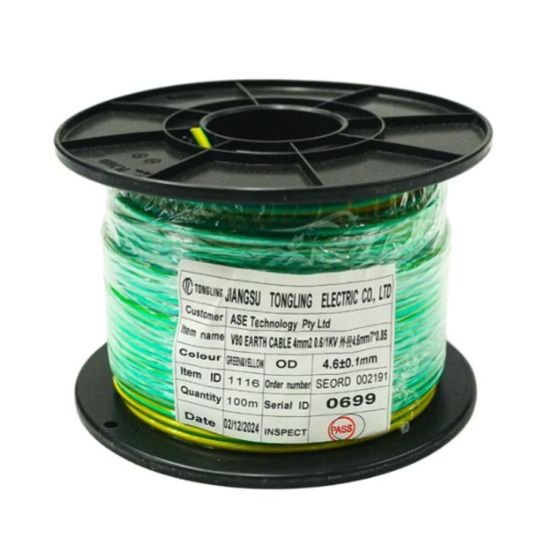

Name: Building Wire Earth Cable 4mm 7/0.85mm PVC PVC 100m 0.1-1kV
SKU: TON4BWET
Availability: InStock

$Tonglin\Tonglin_TON4BWET.JPG$

Description

Building Wire Earth Cable, 0.1-1 kV, 4 mm Conductor, 7/0.85 mm Stranding, 2.55 mm Overall Diameter, 100 mtr Length, 1 mm Insulation Thickness, >=125% Elongation, >=12.5 MPa Tensile Strength, 4.61 Ohm/km Conductor, 40 GOhm/mtr Insulation, Plain Annealed Copper Conductor, PVC Insulation, PVC Sheath

Key Specifications

SKU	TON4BWET
Brand	Tonglin
Range Name	Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TON4BWET
Conductor Resistance	4.61 Ohm/km
Conductor Size	4 mm
Conductor Material	Plain Annealed Copper
Elongation	>=125%
Insulation Colour	Green / Yellow
Insulation Material	PVC
Insulation Resistance	40 GOhm/mtr
Insulation Thickness	1 mm
Overall Diameter	2.55 mm
Sheath Material	PVC
Standards	AS / NZS 5000.1
Stranding	7/0.85 mm
Voltage	0.1-1 kV
Temperature	-25 to 90 deg C
Tensile Strength	>=12.5 MPa
