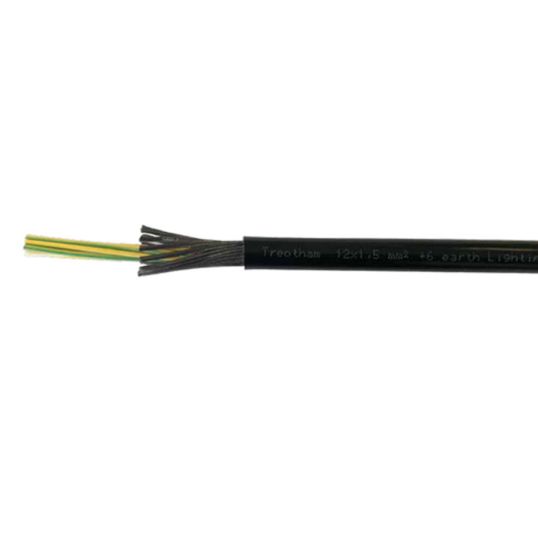

Treotham Treoflex Soft Flex Flexible Cable 12 Core + 6 Earth 1.5mm 450/750V Bare Copper PVC/PVC Black

chevron-left
loader
Loading...

Description

chevron-down
Flexible Cable 12 Core & 6 Earth, 1.5 mm & 1.5 mm, Class 5 Bare Copper, 450/750 V, 12 Core & 6 Earth, 15.3mm Overall Diameter, 76.5mm Bend Radius, Black with White Numbered Core, PVC Insulation, PVC Sheath, Black Sheath, -30 to 70 deg C

Key Specifications

chevron-down
SKU
TRETA21.0015.12.6E
Brand
Treotham
Range Name
Treoflex
Product Type
Flexible Cable

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 26121600
UOM MTR
Vendor Product TA21.0015.12.6E
Bend Radius 76.5 mm
Conductor Size 1.5 mm
Conductor Type Class 5 Copper
Core Colours Black/White Numerals
Insulation Material PVC
Number of Cores 12 Core + 6 Earth
Overall Diameter 15.3 mm
Sheath Colour Black
Sheath Material PVC
Temperature -30 to 70 deg C
Voltage 450-750 Volt
