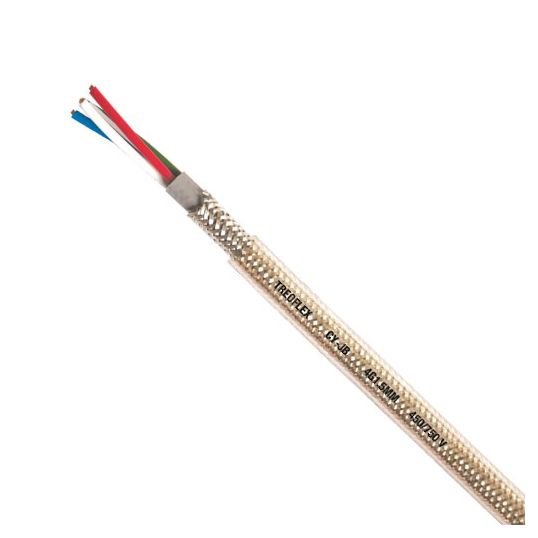

Treotham Treoflex Flexible Screened Control Cable Clear 3 G 2.5 PVC

Description

Flexible Control Cable, 2.5 mm, Class 5 Bare Copper, 450/750 Volt, 2 Core + Earth, 11.8 mm Overall Diameter, Static 70.8 mm Flexible 177 mm Bend Radius, >20 MOhm/km Insulation Resistance, 85% Screen Coverage, Tinned Copper Braid Screen, Clear Core, PVC Insulation, PVC Sheath, Clear Sheath, Static -40 to 80 deg C Flexible -15 to 70 deg C, DIN VDE 0295 IEC 60228

Key Specifications

SKU	TRETA25.0025.03
Brand	Treotham
Range Name	Treoflex
Product Type	Flexible Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TA25.0025.03
Bend Radius	Static 70.8 mm - Flexible 177 mm
Conductor Size	2.5 mm
Core Colours	Clear
Conductor Type	Class 5 Bare Copper
Insulation Material	PVC
Insulation Resistance	>20 MOhm/km
Overall Diameter	11.8 mm
Number of Cores	2 Core + Earth
Screen Material	Tinned Copper Braid
Sheath Colour	Clear
Screen Coverage	85%
Sheath Material	PVC
Standards	DIN VDE 0295 IEC 60228
Temperature	Static -40 to 80 deg C Flexible -15 to 70 deg C
Voltage	450-750 Volt
