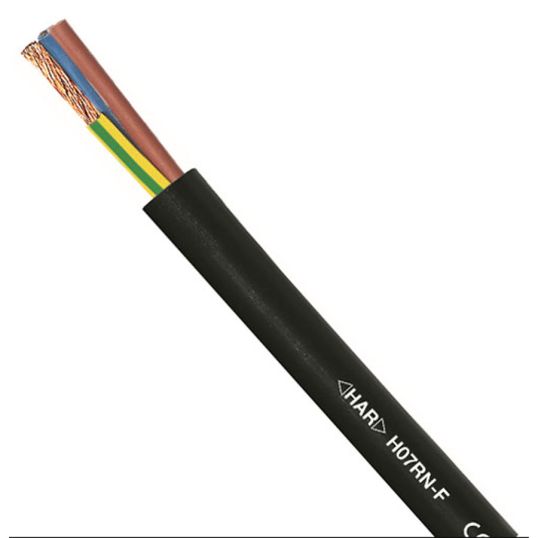

Treotham 1mm 2 Core Black Flexible Cable EPR Type E14/CPE Type EM2

$Treotham\Treotham_Flexible_H07-RN-F.jpg$

Description

Flexible Cable, 1 mm, Bare Copper, 0.3-0.5 kV, 2 Core, 6.1-8 mm Overall Diameter, 24.4-40 mm Bend Radius, EPR Type E14 Insulation, CPE Type EM2 Sheath, Black Sheath, Flexible: -25 to 60 deg C, EN 50525-2-21

Key Specifications

SKU	TRETA35.0010.002
Brand	Treotham
Range Name	HO5 RN-F
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Oil resistant Flame Retardant
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TA35.0010.002
Bend Radius	24.4-40 mm
Conductor Size	1 mm
Conductor Type	Bare Copper
Insulation Material	EPR Type E14
Number of Cores	2 Core
Overall Diameter	6.1-8 mm
Sheath Colour	Black
Sheath Material	CPE Type EM2
Standards	EN 50525-2-21
Temperature	Flexible -25 to 60 deg C
Voltage	0.3-0.5 kV
