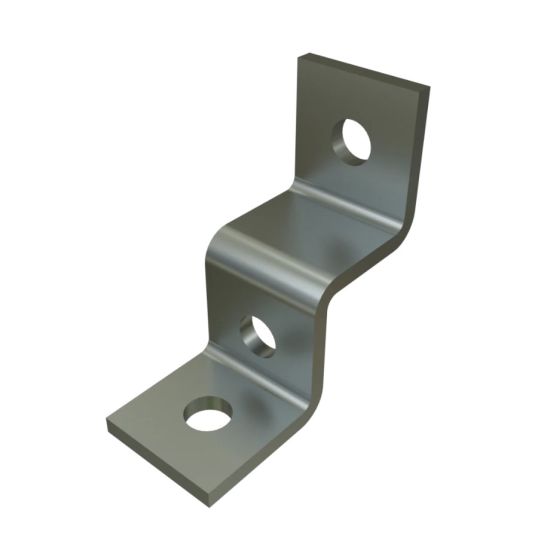

Unistrut Strut Joining Plate Angle Z Shape 90 Degree 3 Hole L90mm W40mm H90mm Steel Hot-Dip Galvanised

$Unistrut\Unistrut_P1736.jpg$

Description

Strut Joining Plate Angle Z Shape, 90 mm Length, 40 mm Width, 90 mm Height, 90 Degree, 3 Holes, 14 mm Hole Diameter, 21 mm From End, 48 mm On Center Hole Spacing, Steel, Hot-Dip Galvanised, For Use With: 41 mm Width Series Strut Fittings, 2.5 Safety Factor

Key Specifications

Barcode (EAN-13)	932148051835
SKU	UNSP1736H
Brand	Unistrut
Product Type	Strut & Channel Joiners

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Unless otherwise noted, all fittings are punch press formed from plate or strip steel All product drawings illustrate only one application of each fitting In most cases many other applications are possible
Standard Pack Size	1
UNSPSC Class	30101800
UOM	EA
Vendor Product	4002093
Angle	90 Deg
Height	90 mm
For Use With	41mm Width Series Strut Fittings
Hole Diameter	14 mm
Hole Spacing	21 mm From End 48 mm On Center
Please Note	2.5 Safety Factor
Number of Holes	3 Hole
Width	40 mm
