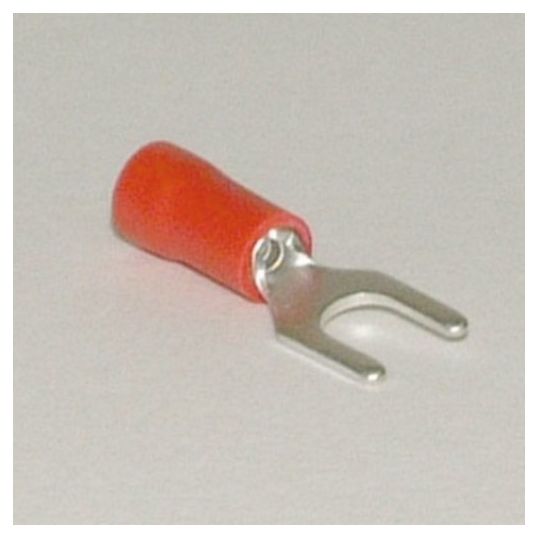

Utilux Forked Spade Insulated Double Grip 0.5-1.5mm M4 Stud Red 21mm OAL

Description

Forked Spade Terminal, Insulated, Double Grip, Conductor Size: 0.5-1.5 mm, Stud Size: M4, Terminal Size: 22-16 AWG, Crimping Die: 9A, 11C OR 11B, 63-4B, 99, 102, 120, Body Material: Copper, Red Insulation, Tin Electroplated Finish, 21mm Overall Length, 7.2mm Lug Width, 0.7mm Lug Thickness, 4.3mm Lug Inside Width, Barrel Length: 10mm, Max. Insulation Diameter: 3.5mm, Merch Pack

Key Specifications

Barcode (EAN-13)	9313988539167
SKU	UTIRFM4/M
Brand	Utilux
Range Name	UtiLug SuperGrip
Product Type	Forked & Ring Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Copper electro tinned to minimise corrosion Square sides provide a non-turn capability
Standard Pack Size	20
UNSPSC Class	39121400
UOM	PK
Vendor Product	UTIRFM4/M
Barrel Length	10 mm
Body Material	Copper
Conductor Size	0.5-1.5mm
Crimping Die	9A/11C/11B/63-4B/99/102/120
Finish	Tin Electroplated
Insulation Colour	Red
Insulation Diameter	3.5 mm
Lug Inside Width	4.3 mm
Lug Thickness	0.7 mm
Lug Width	7.2 mm
Overall Length	21 mm
Pack Size	Merch Pack
Stud Size	M4 Stud
Terminal Size	22-16 AWG
