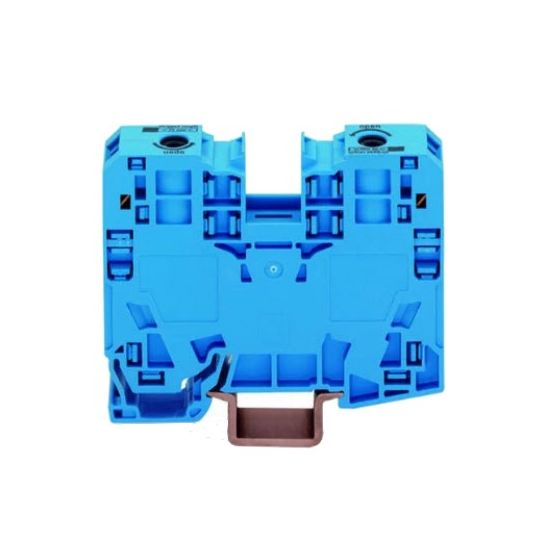

Wago Rail Terminal Block Power Cage Clamp 2 Wire 1 Level 35mm Blue Polyamide 66
Description
Key Specifications
| Barcode (EAN-13) |
4044918660099
|
|---|---|
| SKU |
WAG285-134
|
| Brand |
Wago
|
| Product Type |
Rail Terminal Blocks
|
Technical Specifications
Additional Information
| Standard Pack Size | 15 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 285-134 |
| Depth | 16 mm |
| Conductor Material | Copper |
| Conductor Size | 35mm |
| Current Rating | 125 Amp |
| Actuation Type | Operating Tool |
| Colour | Blue |
| Fire Load | 1.246 MJ |
| Height | 86 mm |
| Marking | (III / 3) Overvoltage category III / Pollution degree 3 |
| Insulation Material | Polyamide 66 |
| Number of Connection Points | 2 |
| Mounting Method | DIN Rail |
| Marking Position | Side |
| Number of Conductors | 2 |
| Number of Levels | 1 |
| Number of Potentials | 1 |
| Terminal Type | Power Cage Clamp |
| Rated Surge Voltage | 8 kV |
| Voltage Rating | 1000 Volt |
| Width | 63 mm |
| Wire Strip Length | 25 mm |
| Wire Entry Orientation | Side |
| Wiring Format | 2 Conductor Through |
