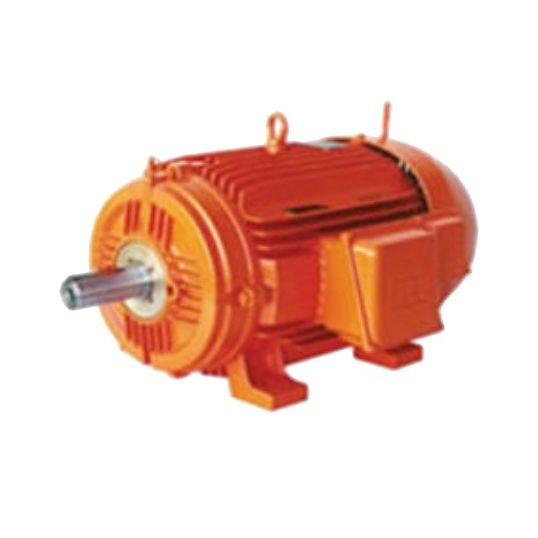

WEG Electric Motor Squirrel Cage Induction Mine Spec 4P 220kW 3Ph 415V 355M/L Frame Foot/Flange B35R(E) Mount

$WEG\WEG_W22.jpg$

Description

Electric Motor Squirrel Cage Induction Mine Spec, 415 Volt AC, 372 Amp, 50 Hz, 3 Phase, 1492 rpm, 220 kW Output, 4 Pole, IC411-TEFC Enclosure, IP66, Frame: 355M/L, 100 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.85, Service Factor: 1.15, Roller Bearing, Direct On Line Starting, Torque: 1412 N/m, Duty Cycle: S1, Foot/Flange B35R(E) Mounting, Insulation Class: H, Efficiency: 96.8%, Cast Iron Frame, Carbon Steel SAE 4140 Shaft, -20 to 40 deg C, 1482 mm Length x 956 mm Width x 885 mm Height

Key Specifications

SKU	WEGLTE56PHEM
Brand	WEG
Range Name	WMining Series
Product Type	Motors SCIM Mine Spec

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The W22 Mining motors can operate with high efficiency in the severest applications They have special mechanical characteristics that ensure durability, mechanical strength, and robustness in every step of the mining process from extraction and transportation to the ore processing Furthermore, they require low maintenance, significantly reducing undesirable downtime, and providing greater plant availability Totally enclosed fan cooled
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	LTE56PHEM
Bearing Type	Roller
Current	372 Amp
Duty Cycle	S1
Efficiency	96.80%
Frame	Size 355M/L
Enclosure Type	IC411-TEFC
Frame Material	Cast Iron
Frequency	50 Hz
Height	885 mm
Insulation Class	Class H
IP Rating	IP66
Mounting Method	Foot/Flange
Phase	3 Phase
Output	220 kW
Number Of Poles	4 Pole
Power Factor	0.85
Rotation	Both (CW and CCW)
Shaft Size	100 mm
Shaft Material	Carbon Steel SAE 4140
Service Factor	1.15
Speed	1492 rpm
Starting Method	Direct On Line
Temperature	-20 to 40 deg C
Torque Rating	1412 Nm
Voltage	415 Volt AC
Width	956 mm
