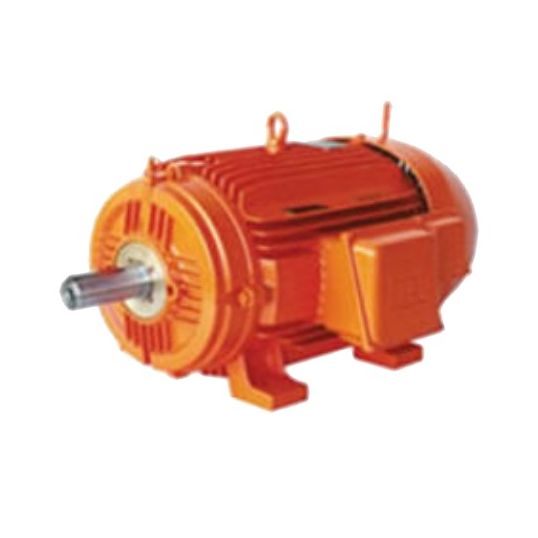

WEG Electric Motor Squirrel Cage Induction Mine Spec 4P 2.2kW 3Ph 240/415V 100L Frame Flange B5R(E) Mount

Description

Electric Motor Squirrel Cage Induction Mine Spec, 240/415 Volt AC, 7.70/4.45 Amp, 3 HP, 50 Hz, 3 Phase, 1435 rpm, 2.2 kW Output, 4 Pole, IC411-TEFC Enclosure, IP66, Frame: 100L, 28 mm Shaft, Rotation: Both (CW and CCW), Power Factor: 0.79, Service Factor: 1.15, Ball Bearing, Direct On Line Starting, Torque: 1.49 kgfm, Duty Cycle: S1, Flange B5R(E) Mounting, Insulation Class: H, Efficiency: 87%, Cast Iron Frame, Carbon Steel SAE 1040/45 Shaft, -20 to 40 deg C, 380 mm Length x 265 mm Width x 244 mm Height

Key Specifications

SKU	WEGMTE16PHEM
Brand	WEG
Range Name	WMining Series
Product Type	Motors SCIM Mine Spec

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	The W22 Mining motors can operate with high efficiency in the severest applications They have special mechanical characteristics that ensure durability, mechanical strength, and robustness in every step of the mining process from extraction and transportation to the ore processing Furthermore, they require low maintenance, significantly reducing undesirable downtime, and providing greater plant availability Totally enclosed fan cooled
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	MTE16PHEM
Bearing Type	Ball
Current	7.70/4.45 Amp
Duty Cycle	S1
Efficiency	87%
Frame	Size 100L
Enclosure Type	IC411-TEFC
Frame Material	Cast Iron
Frequency	50 Hz
Height	244 mm
Horsepower	3 kW
Insulation Class	Class H
IP Rating	IP66
Mounting Method	Flange
Phase	3 Phase
Output	2.2 kW
Number Of Poles	4 Pole
Power Factor	0.79
Rotation	Both (CW and CCW)
Shaft Size	28 mm
Shaft Material	Carbon Steel SAE 1040/45
Service Factor	1.15
Speed	1435 rpm
Starting Method	Direct On Line
Temperature	-20 to 40 deg C
Torque Rating	1.49 kgfm
Voltage	240-415 Volt AC
Width	265 mm
