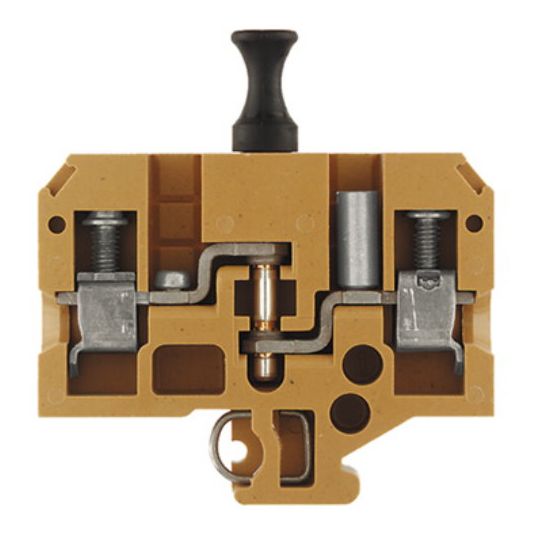

Weidmuller SAK Series Rail Test-Disconnect Terminal Block SAKC 10 2STB 10mm 2 Wire Screw Connection KrG Medium Yellow

$Weidmuller\Weidmuller_324120000.jpg$

Description

Test Disconnect Terminal Block, 10 mm, 500 Volt, 26 Amp, 12 mm Wire Strip Length, 1.2-2.4 Nm Tightening Torque, 2 Connection Points, 1 Potential, 1 Level, Screw Terminal, Snap In Mounting, KrG Insulation, Yellow, -60 to 130 deg C, UL94 V0 Flammability, 65 mm Height, 12 mm Width, 52.5 mm Depth

Key Specifications

SKU	WEI0324120000
Brand	Weidmuller
Product Type	Disconnect Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	0324120000
Depth	52.5 mm
Conductor Size	10mm
Current Rating	26 Amp
Colour	Yellow
Flammability	UL94 V0
Height	65 mm
Insulation Material	KrG
Number of Connection Points	2
Mounting Method	Snap In
Number of Levels	1
Number of Potentials	1
Terminal Type	Screw
Tightening Torque	1.2-2.4 Nm
Temperature	-60 to 130 deg C
Voltage Rating	500 Volt
Width	12 mm
Wire Strip Length	12 mm
