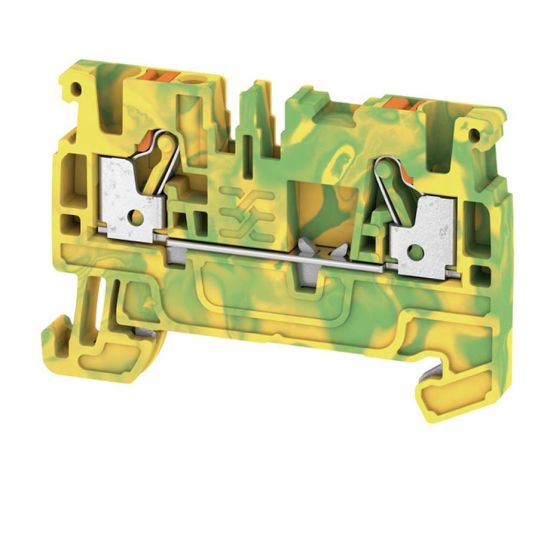

Weidmuller Klippon PE Terminal A2C 2.5 PE Push In 2.5mm Green/Yellow
Loading...
Description
PE Terminal Block, 2.5 mm, 10 mm Wire Strip Length, 2 Connection Points, 1 Potential, 1 Level, Snap In Mounting, Wemid Insulation, Green/Yellow, -60 to 130 deg C, UL94 V0 Flammability, 55 mm Height, 5.1 mm Width, 36.5 mm Depth
Key Specifications
| Barcode (EAN-13) |
4050118328189
|
|---|---|
| SKU |
WEI1521680000
|
| Brand |
Weidmuller
|
| Product Type |
Termninal Blocks
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 50 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 1521680000 |
| Depth | 36.5 mm |
| Conductor Size | 2.5mm |
| Colour | Green/Yellow |
| Flammability | UL94 V0 |
| Height | 55 mm |
| Insulation Material | Wemid |
| Number of Connection Points | 2 |
| Mounting Method | Snap In |
| Number of Levels | 1 |
| Number of Potentials | 1 |
| Temperature | -60 to 130 deg C |
| Width | 5.1 mm |
| Wire Strip Length | 10 mm |
