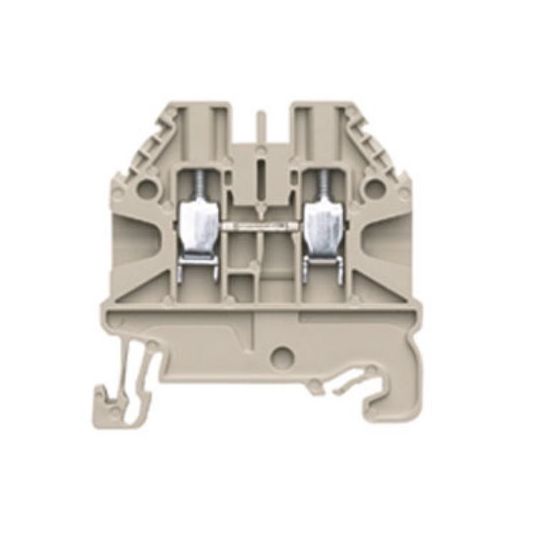

Wieland Rail Terminal Block Screwed 2 Wire 1 Level 2.5mm Grey Thermoplastic
Loading...
Description
Feed-through terminal with Screw connection for mounting on TS 35, nominal cross section: 2.5 sq-mm, width: 5 mm, colour: grey.
Key Specifications
| SKU |
WIE58.503.0055.0
|
|---|---|
| Brand |
Wieland
|
| Range Name |
Selos
|
| Product Type |
Rail Terminal Blocks
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 58.503.0055.0 |
| Depth | 5 mm |
| Conductor Size | 2.5mm |
| Current Rating | 24 Amp |
| Colour | Grey |
| Flammability | UL94 V0 |
| Height | 48 mm |
| Insulation Material | Thermoplastic |
| Mounting Method | DIN Rail TS 35 |
| Number of Conductors | 2 |
| Number of Levels | 1 |
| Terminal Type | Screw |
| Rated Surge Voltage | 8 kV |
| Tightening Torque | 0.4 Nm |
| Voltage Rating | 1000 Volt |
| Width | 48 mm |
| Wire Strip Length | 9 mm |
| Wiring Format | 2 Conductor Through |
