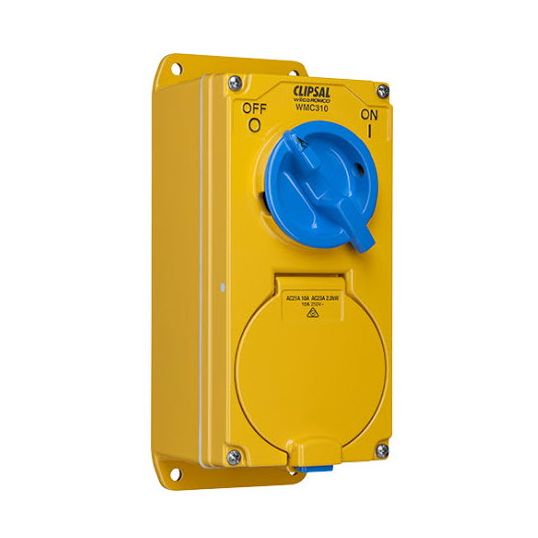

Wilco Switch Socket Outlet Surface Mounting Metal Clad 1Ph 10A 250V 3 Pin 2 Flat/1 Round Yellow/Blue Switch IP66

Description

Switched Socket Outlet, 250 Volt, 10 Amp, 1 Phase Phase, 1 Pole, 3 Pin 2 Flat Round Earth, Screw Connection, 1.5-6 sq-mm Terminal Capacity, Surface Mounting, IP66, Yellow/Blue, -20 to 70 deg C

Key Specifications

Barcode (EAN-13)	9311554779429
SKU	WILWMC310L
Brand	Wilco
Product Type	Switch Sockets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Spring loaded socket flap with latch for added safety coverage Off and On marking is raised to ensure marking never wears off Padlocking facility (8 mm) in off position Optional safety interlock facility External and accessible mounting facilities 316 stainless steel cover mounting screws
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	WMC310L
Colour	Yellow/Blue
Connection Type	Screw
Current	10 Amp
IP Rating	IP66
Mounting Method	Surface
Number Of Poles	1 Pole
Phase	1 Phase
Pin Configuration	3 Pin 2 Flat Round Earth
Temperature	-20 to 70 deg C
Terminal Capacity	1.5-6 sq-mm
Voltage	250 Volt
