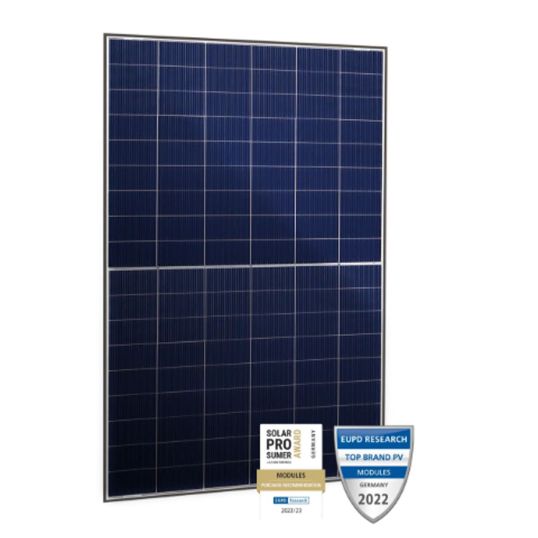

Winaico Solar Panel 515W Monocrystalline 108 Cells 34.49V 14.94A Black Anodised Aluminum Commercial 41.09V 15.81A 30A

$Winaico\Winaico_WST-515NHX54-A4.JPG$

Description

Solar Panel, Commerical Model, Monocrystalline Cell, 108, 515 Watt, 34.49 Volt Maximum, 14.94 Amp Maximum, 41.09 Volt Open Circuit, 15.81 Amp Short Circuit, 30 Amp Max. Fuse, 1500 Volt Max. System, 22.9% Efficiency, 0-5 Watt Power Tolerance, PV-KST4-EVO2A/xy, PV-KBT4-EVO2A/xy Connector, 30 mm Height

Key Specifications

SKU	WINWST-515NHX54-A4
Brand	Winaico
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High BifacialityWith a remarkable bifaciality factor of90%, HJT cells present an excellent optionfor utility-scale installations. High efficiencyHJT has achieved impressive conversionefficiencies. It optimizes light trappingand minimizes energy losses, leading toimproved overall efficiency. Outstanding Temperature CoefficientIts resistance to temperature fluctuations,making it a dependable choice forextreme heat conditions.
Standard Pack Size	36
UNSPSC Class	26111600
UOM	EA
Vendor Product	WST-515NHX54-A4
Cell Type	Monocrystalline
Connector Type	PV-KST4-EVO2A/xy, PV-KBT4-EVO2A/xy
Certifications	IEC 61215:2021 / IEC 61730:2023 / ISO 9001 / ISO 5000 / ISO 1400
Efficiency	22.90%
Frame Construction	Black Anodized Aluminium
Front Glass	2 mm, Semi-Tempered Solar Glass with Anti-Reflective Coating
Height	30 mm
Item Weight	27.4 kg
Junction Box	IP68 / 3 Bypass Diodes
Max. Fuse Current	30 Amp
Max. System Voltage	1500 Volt
Model	Commerical
Number Of Cells	108
Operating Temperature	-40 to 85 deg C
Power Tolerance	0-5 Watt
Output Cables	2 x 1250 mm / 4 sq-mm
Temperature Coefficient	-0.24%/ deg C
Warranty	25 Years Product / 30 Years Performance
Width	1134 mm
