Winaico Solar Panel 525W Monocrystalline 132 Cells 39.84V 13.18A Black Anodised Aluminum Commercial 47.22V 13.81A 30A

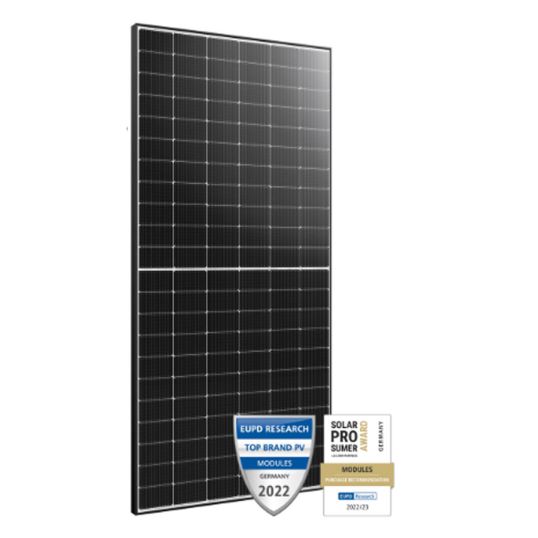

$Winaico\Winaico_WST-525NGX-D3.JPG$

Description

Solar Panel, Commerical Model, Monocrystalline Cell, 132, 525 Watt, 39.84 Volt Maximum, 13.18 Amp Maximum, 47.22 Volt Open Circuit, 13.81 Amp Short Circuit, 30 Amp Max. Fuse, 1500 Volt Max. System, 22.1% Efficiency, 0-5 Watt Power Tolerance, QC4.10 IP68 Connector, 2 x 0.4 mtr, 4 sq-mm Output Cables

Key Specifications

SKU	WINWST-525NGX-D3
Brand	Winaico
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	WST-525NGX-D3
Cell Type	Monocrystalline
Certifications	IEC 61215-1:2016 / IEC 61215-2:2016 / IEC 61730-1:2016 / IEC 61730-2:2016
Connector Type	QC4.10 IP68
Efficiency	22.10%
Front Glass	2 mm, Highly Transparent Solar Glass with Anti-Reflective Coating
Frame Construction	Black Anodized Aluminium
Height	35 mm
Item Weight	29.7 kg
Junction Box	IP68 / 3 Bypass Diodes
Max. Fuse Current	30 Amp
Max. System Voltage	1500 Volt
Model	Commerical
Number Of Cells	132
Operating Temperature	-40 to 85 deg C
Output Cables	2 x 0.4 mtr / 4 sq-mm
Power Tolerance	0-5 Watt
Temperature Coefficient	-0.30%/ deg C
Warranty	15 Years Product / 30 Years Performance
Width	1134 mm
