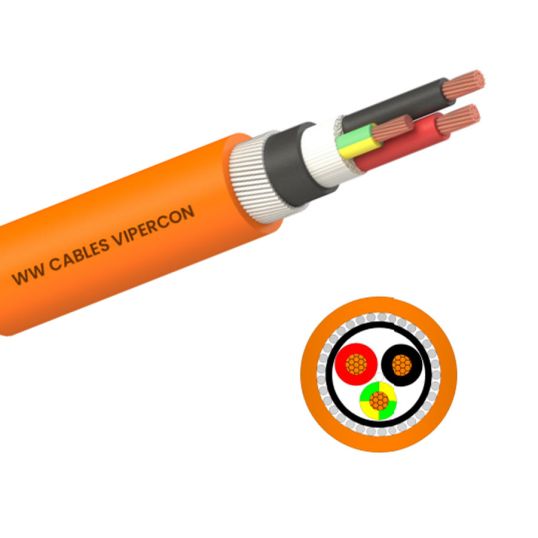

WWC 16 mm Orange Circular Cable Armoured X-90 XLPE/Galvanised Steel Wire/5V-90 PVC 500mtr

Description

Circular Cable, Armoured, 16 mm, Class 2 Annealed Copper, 0.6-1 kV, 2 Core + Earth, 7.3 mm Core Diameter, 4.8 mm Nominal Diameter, 22 mm Overall Diameter, 15.3 mm Bedding Diameter, 6 mm Earth Conductor, 500 mtr Length, 416 mm During Installation/277 mm After Installation Bend Radius, 0.7 mm Insulation Thickness, 1.15 Ohm/km Conductor Resistance, Galvanised Steel Wire Armour, Red/Black/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, -40 to 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6

Key Specifications

SKU	WWC1316
Brand	WWC
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1316
Bedding Diameter	15.3 mm
Armour Material	Galvanised Steel Wire
Bend Radius	416 mm During Installation/277 mm After Installation
Conductor Type	Class 2 Annealed Copper
Conductor Size	16 mm
Core Colours	Black/Red/Green/Yellow
Conductor Resistance	1.15 Ohm/km
Core Diameter	7.3 mm
Earth Conductor Size	6 mm
Insulation Material	X-90 XLPE
Insulation Thickness	0.7 mm
Nominal Diameter	4.8 mm
Number of Cores	2 Core + Earth
Overall Diameter	22 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6
Temperature	-40 to 90 deg C
Voltage	0.6-1 kV
