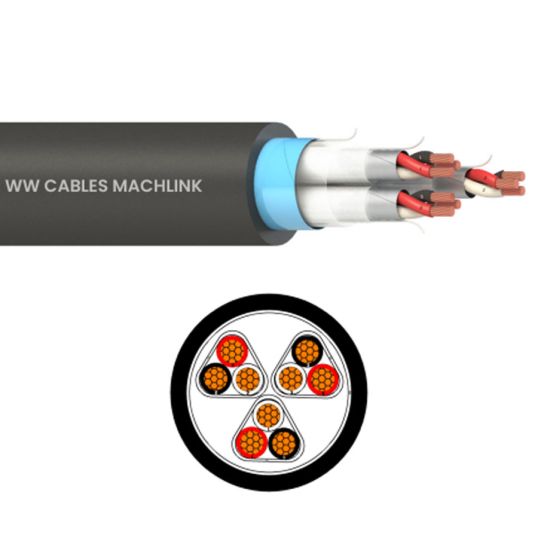

WWC 1.5mm 6 Triad Instrumentation Cable Unarmoured Individual & Overall Screened

Description

Instrumentation Cable, Unarmoured, 1.5 mm, Class 2 Annealed Copper, 110 Volt AC/150 Volt DC, 6 Triad, 7/0.5 mm Strands, Individual & Overall Screened Screen, 16.7 mm Overall Diameter, 210 mm During Installation/140 mm After Installation Bend Radius, 13.6 Ohm/km Conductor Resistance, 0.4 mm Insulation Thickness, Aluminium Foil/Polyester Tape w/Tinned Annealed Copper Drain Wire Screen, Black/White/Red Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath, -25 to 75 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 AS/NZS 1660.5.1 UL 2464

Key Specifications

SKU	WWC5123N
Brand	WWC
Product Type	Instrumentation Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5123N
Conductor Resistance	13.6 Ohm/km
Bend Radius	210 mm During Installation/140 mm After Installation
Conductor Size	1.5 mm
Conductor Type	Class 2 Annealed Copper
Core Colours	Black/White/Red
Insulation Material	V-90 PVC
Insulation Thickness	0.4 mm
Overall Diameter	16.7 mm
Number of Pairs	6 Triad
Screen Format	Individual & Overall Screened
Sheath Colour	Black
Screen Material	Aluminium Foil/Polyester Tape w/Tinned Annealed Copper Drain Wire
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 AS/NZS 1660.5.1 UL 2464
Stranding	7/0.5 mm
Temperature	-25 to 75 deg C
Voltage	110 Volt AC/150 Volt DC
