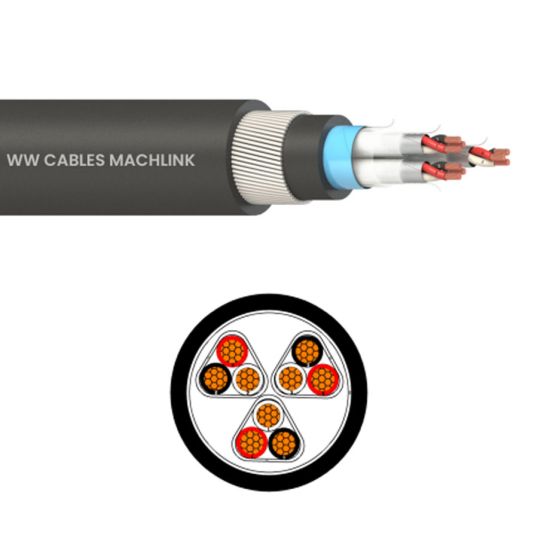

WWC Machlink Instrumentation Cable 10 Triad 0.5mm 110/150V Copper/PVC/Ind & Overall Screen/SWA/PVC Black

Description

Instrumentation Cable 10 Triad, 0.5mm, Class 2 Plain Annealed Copper, 110 Volt AC/150 Volt DC, 10 Triad Pair, 7/0.3mm Strands, Individual & Overall Screen, 22.3mm Overall Diameter, During Installation: 421mm, After Installation: 281mm Bend Radius, 0.4mm Insulation Thickness, 38.4 Ohm/km, Aluminium Foil/Polyester Tape with Tinned Annealed Copper Drain Wire Screen, Galvanised Steel Wire Armour, Black, White & Red with Numbered Triads Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath,-25 to 75 deg C, AS/NZS 1125, AS/NZS 3808, AS/NZS 1660.5.6, AS/NZS 1660.5.1

Key Specifications

SKU	WWC5313N
Brand	WWC
Product Type	Instrumentation Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5313N
Armour Material	Galvanised Steel Wire
Bend Radius	During Installation: 421 mm/After Installation: 281 mm
Conductor Resistance	38.4 Ohm/km
Conductor Size	0.5 mm
Conductor Type	Class 2 Annealed Copper
Core Colours	Black/Red/White
Insulation Material	V-90 PVC
Insulation Thickness	0.4 mm
Number of Pairs	10 Triad
Overall Diameter	22.3 mm
Screen Format	Individual & Overall Screened
Screen Material	Aluminium Foil/Polyester Tape with Tinned Annealed Copper Drain Wire
Sheath Colour	Black
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 AS/NZS 1660.5.1
Stranding	7/0.3 mm
Sheath Material	5V-90 PVC
Temperature	-25 to 75 deg C
Voltage	110 Volt AC/150 Volt DC
