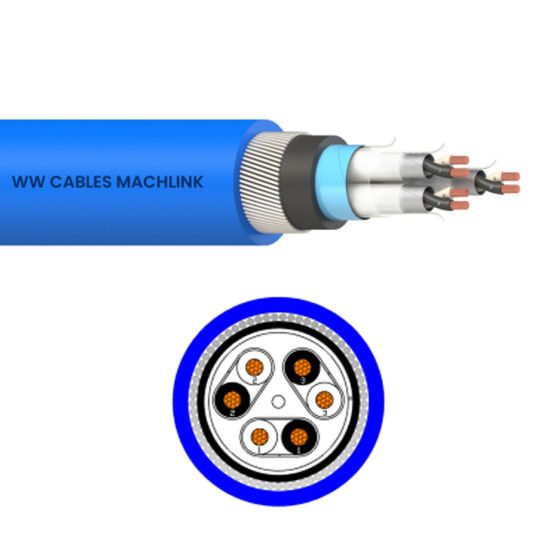

WWC Instrumentation Cable 1.5mm 110VAC/150VDC 2 Pair Aluminium/Polyester Screen PVC Insulation PVC Sheath

$WWC\WWC_59xxBLU-N.jpg$

Description

Instrumentation Cable Armoured, 1.5 mm, Class 2 Annealed Copper, 110 Volt AC/150 Volt DC, 2 Pair, 15.2 mm Overall Diameter, 287 mm During Installation/192 mm After Installation Bend Radius, 0.4 mm Insulation Thickness, 13.6 Ohm/km Conductor Resistance, Aluminium Foil/Polyester Tape Screen, Galvanised Steel Wire Armour, Black/White/Red Numerals Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath, -25 to 75 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 AS/NZS 1660.5.1 UL 2464

Key Specifications

SKU	WWC5902N
Brand	WWC
Product Type	Instrumentation Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5902N
Armour Material	Galvanised Steel Wire
Bend Radius	287 mm During Installation/192 mm After Installation
Conductor Resistance	13.6 Ohm/km
Conductor Size	1.5 mm
Conductor Type	Class 2 Annealed Copper
Core Colours	Black/White/Red Numerals
Insulation Material	V-90 PVC
Insulation Thickness	0.4 mm
Number of Pairs	2 Pair
Overall Diameter	15.2 mm
Screen Material	Aluminium Foil/Polyester Tape
Sheath Colour	Black
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 AS/NZS 1660.5.1 UL 2464
Sheath Material	5V-90 PVC
Temperature	-25 to 75 deg C
Voltage	110 Volt AC/150 Volt DC
