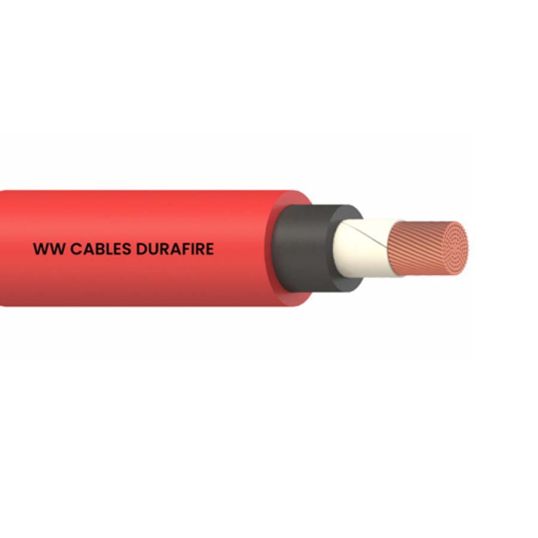

WWC 630 mm Fire Rated Cable X-HF-110/HFS-110-TP Red 500mtr
Loading...
Description
Fire Rated Cable 1 Core, 630 mm, Class 5 Flexible Plain Annealed Copper, 0.6/1 kV, 1 Core, 46.5 mm Overall Diameter, During Installation: 409 mm, After Installation: 307 mm Bend Radius, 2.4 mm Insulation Thickness, 0.0287 Ohm/km, Black Core, LSZH X-HF-110 Insulation, LSZH (HFS-110-TP) Sheath, Red Sheath, WS52W,-40 to 110 deg C, AS/NZS 3013, AS/NZS 1125, AS/NZS 1660, AS/NZS 5000.1, AS/NZS 3808
Key Specifications
| SKU |
WWC7863HFSMICA-FLEX
|
|---|---|
| Brand |
WWC
|
| Product Type |
Fire Rated Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 500 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 7863HFSMICA-FLEX |
| AS3013 Rating | WS52W |
| Bend Radius | During Installation: 409 mm/After Installation: 307 mm |
| Conductor Resistance | 0.0287 Ohm/km |
| Conductor Size | 630 mm |
| Conductor Type | Class 5 Annealed Copper |
| Core Colours | Black |
| Insulation Material | X-HF-110 |
| Insulation Thickness | 2.4 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 46.5 mm |
| Sheath Colour | Red |
| Sheath Material | HFS-110-TP |
| Standards | AS/NZS 3013; AS/NZS 1125; AS/NZS 1660; AS/NZS 5000.1; AS/NZS 3808 |
| Temperature | -40 to 110 deg C |
| Voltage | 0.6-1 kV |
