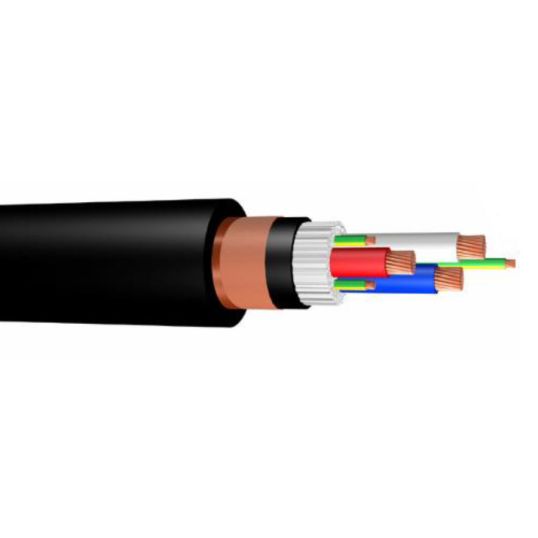

WWC Conflex Rigid VSD/EMC Cable Screened 3 Core & 3 Earth 240mm 0.6/1kV Bare Copper XLPE/Copper Tape/PVC Black
Loading...
Description
Rigid VSD/EMC Cable, Screened, 3 Core & 3 Earth, 240 mm, Class 2 Stranded Bare Copper, 0.6/1 kV, 35 mm Earth Conductor, 52.9 mm Bedding Diameter, 58.8 mm Overall Diameter, Copper Tape Screen, XLPE Insulation, 5V-90 PVC Sheath, Red Blue White Green/Yellow Cores, Black Sheath, AS/NZS 5000.1
Key Specifications
| SKU |
WWC9424XCTPV
|
|---|---|
| Brand |
WWC
|
| Range Name |
Conflex
|
| Product Type |
VSD/EMC Cable Rigid
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 9424XCTPV |
| Bedding Diameter | 52.9 mm |
| Conductor Size | 240 mm |
| Conductor Type | Class 2 Stranded Copper |
| Core Colours | Red/Blue/White/Green/Yellow |
| Earth Conductor Size | 35 mm |
| Insulation Material | XLPE |
| Number of Cores | 3 Core + 3 Earth |
| Overall Diameter | 58.8 mm |
| Screen Material | Copper Tape |
| Sheath Colour | Black |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 5000.1 |
| Voltage | 0.6-1 kV |
