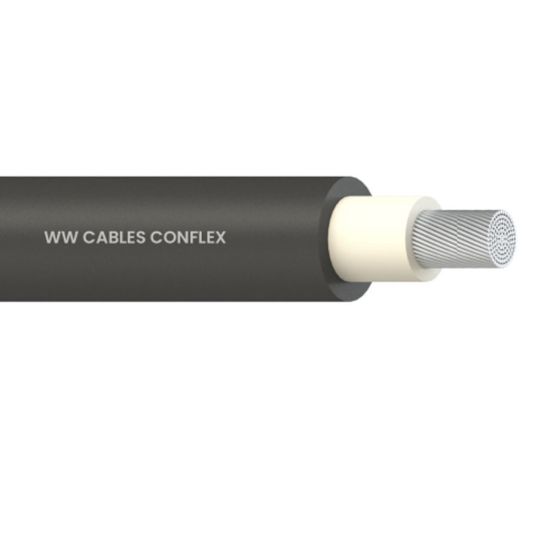

Flexible Cable 1 Core 120mm 0.6/1kV Aluminium X-HF-110/HFS-110-TP Black

$WWC\WWC_1C_Flexible_SDI.jpg$

Description

Flexible Cable, 120 mm, Flexible Aluminium, 0.6-1 kV, 1 Core, 15.4 mm Nominal Diameter, 21 mm Overall Diameter, 231 mm During Installation/139 mm After Installation Bend Radius, 1.2 mm Insulation Thickness, X-HF-110 LSZH Insulation, White Insulation, HFS-110-TP LSZH Sheath, Black Sheath, -40 to 110 deg C, AS/NZS 5000.1 AS/NZS 1660.5.6 AS/NZS 3808 AS/NZS 1125

Key Specifications

SKU	WWCAL120X2H2
Brand	WWC
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flame Retardant UV Stabilised Low Smoke Halogen Free Flexible
Standard Pack Size	1
UNSPSC Class	26121500
UOM	MTR
Vendor Product	AL120X2H2
Bend Radius	231 mm During Installation - 139 mm After Installation
Conductor Size	120 mm
Conductor Type	Flexible Aluminium
Insulation Colour	White
Insulation Material	X-HF-110 LSZH
Insulation Thickness	1.2 mm
Nominal Diameter	15.4 mm
Number of Cores	1 Core
Overall Diameter	21 mm
Sheath Colour	Black
Sheath Material	HFS-110-TP LSZH
Standards	AS/NZS 5000.1 AS/NZS 1660.5.6 AS/NZS 3808 AS/NZS 1125
Temperature	-40 to 110 deg C
Voltage	0.6-1 kV
