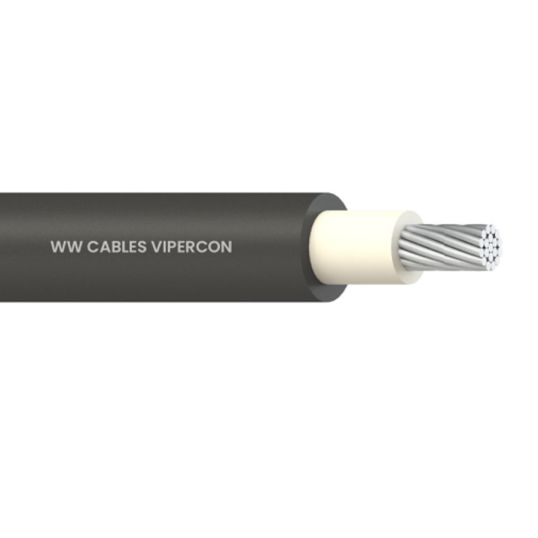

Cable 1 Core 50mm 0.6/1kV Class 2 Aluminium X-90 XLPE/5V-90 PVC Black
Loading...
Description
SDI, 50 mm, Compacted Aluminium, 0.6-1 kV, 1 Core, 8.4 mm Nominal Diameter, 13.1 mm Overall Diameter, 173 mm During Installation/115 mm After Installation Bend Radius, 1 mm Insulation Thickness, 0.641 Ohm/km Conductor Resistance, X-90 XLPE Insulation, White Insulation, 5V-90 PVC Sheath, Black Sheath, -40 to 90 deg C, AS/NZS 5000.1 AS/NZS 1660.5.6 AS/NZS 3808 AS/NZS 1125
Key Specifications
| SKU |
WWCAL50
|
|---|---|
| Brand |
WWC
|
| Product Type |
Flexible Cable SDI
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | AL50 |
| Bend Radius | 173 mm During Installation - 115 mm After Installation |
| Conductor Resistance | 0.641 Ohm/km |
| Conductor Size | 50 mm |
| Conductor Type | Compacted Aluminium |
| Insulation Colour | White |
| Insulation Material | X-90 XLPE |
| Insulation Thickness | 1 mm |
| Nominal Diameter | 8.4 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 13.1 mm |
| Sheath Colour | Black |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 5000.1 AS/NZS 1660.5.6 AS/NZS 3808 AS/NZS 1125 |
| Temperature | -40 to 90 deg C |
| Voltage | 0.6-1 kV |
