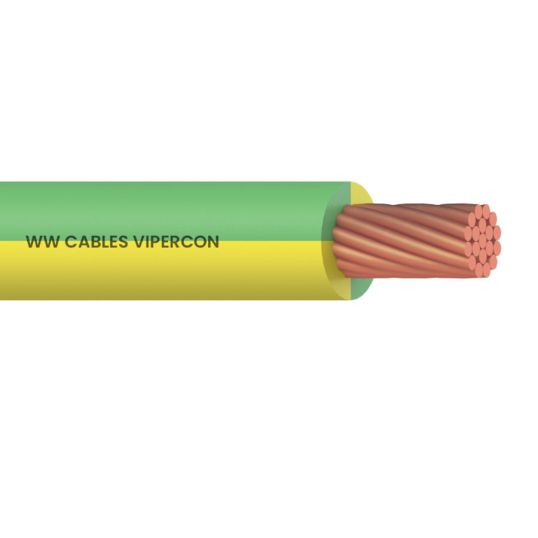

WWC 6mm Building Wire Green/Yellow 100mtr
Loading...
Description
Building Wire, 6 mm, Class 2 Annealed Copper, 0.6-1 kV, 5.2 mm Overall Diameter, 100 mtr Length, 50 mm During Installation/33 mm After Installation Bend Radius, DC: 3.08 Ohm/km Conductor Resistance, V-90 PVC Insulation, Green/Yellow Insulation, -25 to 75 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6
Key Specifications
| SKU |
WWCE2V6M1
|
|---|---|
| Brand |
WWC
|
| Product Type |
Building Wire
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121614 |
| UOM | MTR |
| Vendor Product | E2V6M1 |
| Conductor Resistance | DC: 3.08 Ohm/km |
| Bend Radius | 50 mm During Installation/33 mm After Installation |
| Conductor Type | Class 2 Annealed Copper |
| Conductor Size | 6 mm |
| Insulation Colour | Green/Yellow |
| Insulation Material | V-90 PVC |
| Overall Diameter | 5.2 mm |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6 |
| Temperature | -25 to 75 deg C |
| Voltage | 0.6-1 kV |
